Mathematical Geometry Meets Web Audio in Browser Synth Musical Spirograph

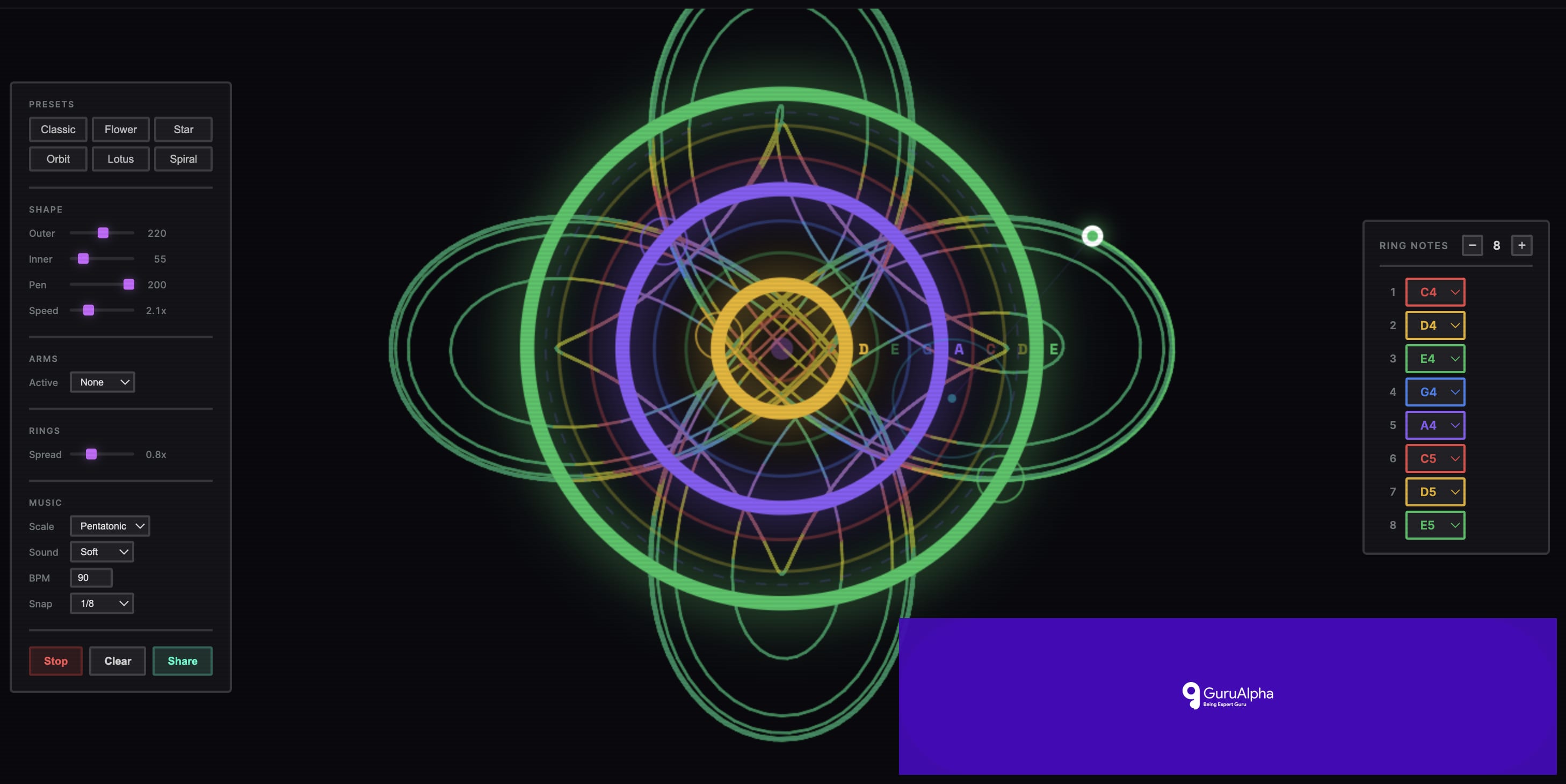

Musical Spirograph transforms the classic plastic geometric drawing toy into an interactive browser-based generative music synth. By running mathematical equations that plot hypotrochoids and epitrochoids across concentric virtual rings, the application translates complex geometric patterns into harmonious polyphonic melodies directly inside any Web Audio-capable web browser.

Geometry as Sound: How Equations Drive the Digital Rotor

In 1965, British engineer Denys Fisher introduced the Spirograph at the Nuremberg International Toy Fair, using interlocking plastic gears to let children draw intricate mathematical curves. Six decades later, that mechanical principles system has migrated entirely into the browser, substituting ink pens for real-time audio synthesis. Musical Spirograph uses equations governing hypotrochoids—curves generated by a point on a circle rolling inside another circle—and epitrochoids, where the circle rolls along the outside perimeter.

As these mathematical points trace complex geometric loops across the screen, they cross a grid of concentric circles arranged like target rings. Each ring acts as an electronic trigger assigned to specific pitch values within chosen musical scales. When a drawing arm crosses a ring threshold, it generates a discrete audio note, turning visual geometry into continuous polyphonic soundscapes.

Customizing the Rotor: From Polyrhythms to Ambient Soundscapes

The interface provides six distinct virtual rotor configurations and allows up to three simultaneous drawing arms to operate on the digital canvas. Users adjust physical parameters including rotor speed, radius ratios, gear pitch, and decay rates to alter both the visual drawing and the musical output. Adding multiple drawing arms creates intersecting mathematical paths that hit trigger rings at uneven time intervals, generating complex polyrhythms and evolving ambient layers without requiring traditional musical sequencing knowledge.

By mapping scale presets—ranging from traditional pentatonic and minor arrangements to microtonal ambient tuning—the application eliminates dissonance while allowing infinite compositional variation. The rendering engine leverages HTML5 Canvas and the Web Audio API, executing thousands of trigonometric calculations per second to keep visual motion perfectly synchronized with audio output without requiring external plugins or heavy hardware resources.

Democratizing Algorithmic Composition

Generative music historically required specialized programming environments like Max/MSP, SuperCollider, or Pure Data, creating steep learning curves for non-programmers. Musical Spirograph strips away syntax barriers by utilizing physical intuition and visual feedback. Brian Eno pioneered generative sound systems in the late 1970s using overlapping tape loops of varying lengths; browser-based mathematical synths achieve similar non-repeating sonic evolution through simple geometric geometry.

For educators, creative coders, and ambient sound producers, the tool demonstrates how mechanical math concepts intersect with digital audio processing. By turning parametric equations into audio-visual instruments, Musical Spirograph offers an accessible sandbox where geometry directly dictates harmony, melody, and rhythm.

Frequently Asked Questions

How does Musical Spirograph generate audio from geometric shapes?

Mathematical equations calculate hypotrochoid and epitrochoid drawing curves across the canvas. When the moving drawing points cross concentric ring thresholds, the application triggers Web Audio API synthesis notes corresponding to assigned pitch scales.

What customization options are available in the Musical Spirograph interface?

Users can select from six virtual rotor variations and run up to three drawing arms simultaneously. Parameters like rotor speed, gear ratios, and musical scale presets can be altered to produce distinct polyrhythms.

Does Musical Spirograph require software downloads or MIDI hardware?

No external downloads, plugins, or physical MIDI gear are required. The entire application runs natively inside modern web browsers using HTML5 Canvas rendering and Web Audio processing.
